| Quantity: | |
|---|---|
Purpose:

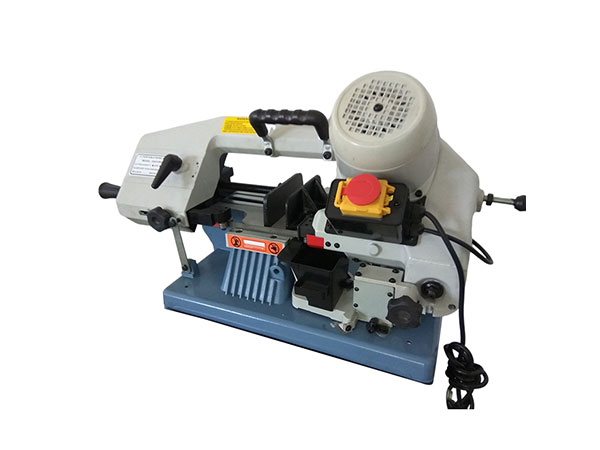

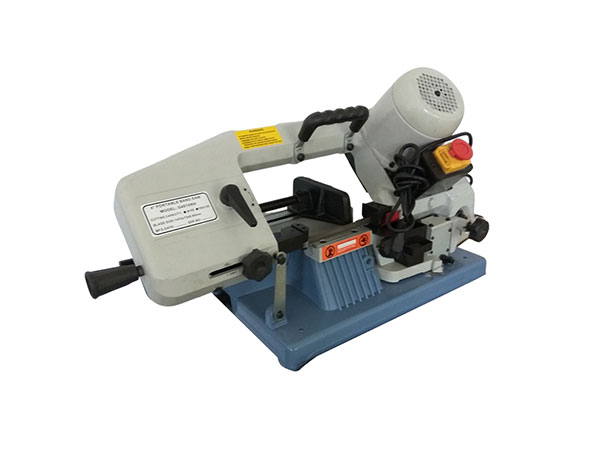

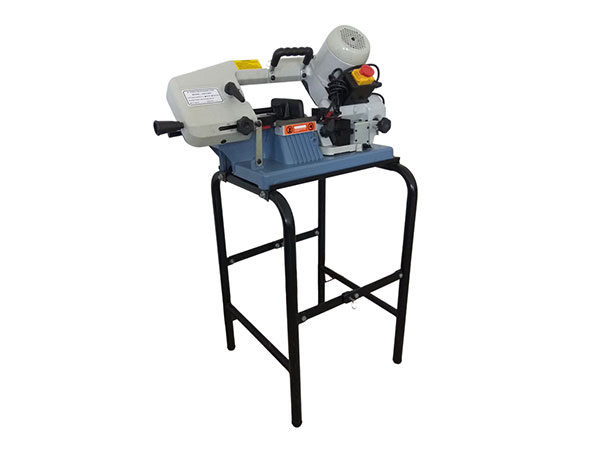

The manual band saw G4510is designed for cutting workpieces from metals,non-ferrous, nickel, titanium, as well as high-alloy and structural steels.
The cutting program is carried out by a saw blade (band saw), which is welded as a ring shape and mounted on a saw frame. The saw frame lowers under its own weight, and the adjustable hydraulic cylinder (hydraulic unloading) allows you to adjust the speed of lowering the saw frame, depending on the installed workpiece and sawing modes.
Machine advantages:
* High machining accuracy due to carbide guides with bearings
* Saving material while make accurate cuts due to little vibration of the band.
* The ability to cut at different angles
* Batch cutting to save processing time
* Can cut various workpieces: pipes, profiles, etc
Technical Parameters
Model # | G4510 |
Motor power | 370W |
Saw blade sizes | 1470 x 13 x 0.65mm |
Blade speed in m/min | 45 in 50Hz and 54 by 60Hz |
Rotation Angel of Saw frame | 0 - 45° |
Cutting Capacity @ 0°, mm | ●100 ●150 x 100 |
Cutting Capacity @ 45°, mm | ●60 ●100 x 60 |
Table height | 680mm |
Coolant pump | N/A |
Dimensions: | |
Length*Width*Height, mm in packaging | 730*360*450 |
Net Weight | 30kg |
Gross Weight | 32kg |
Quantity per 20” container | 240 sets |
