STANDARD FEATURES:

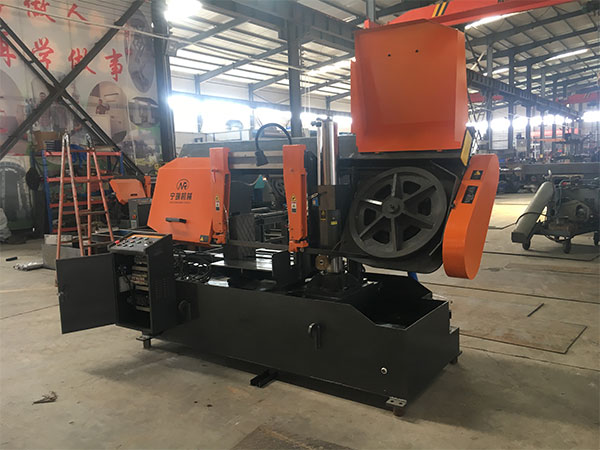

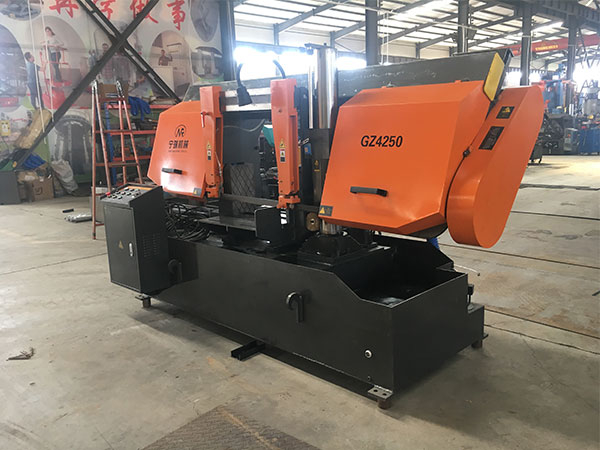

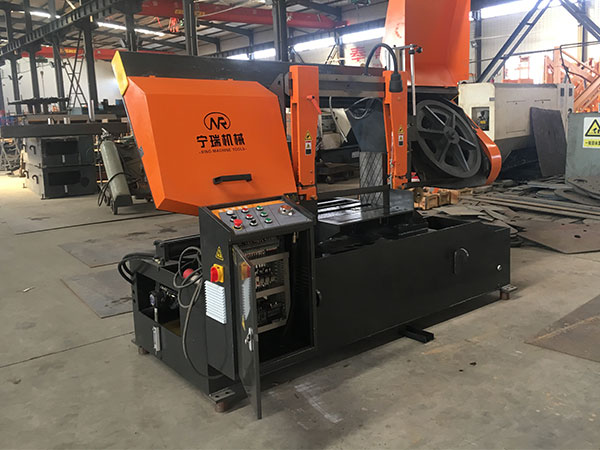

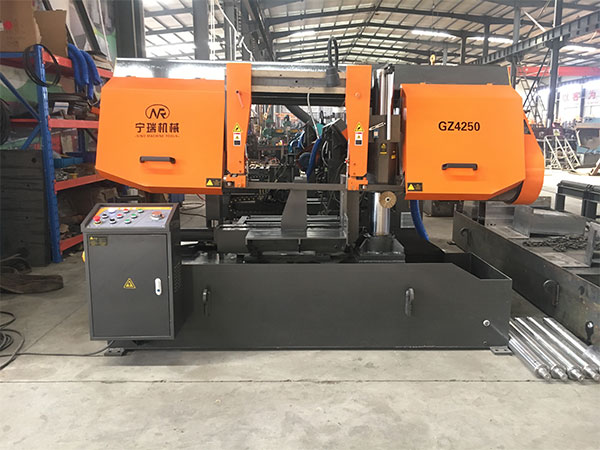

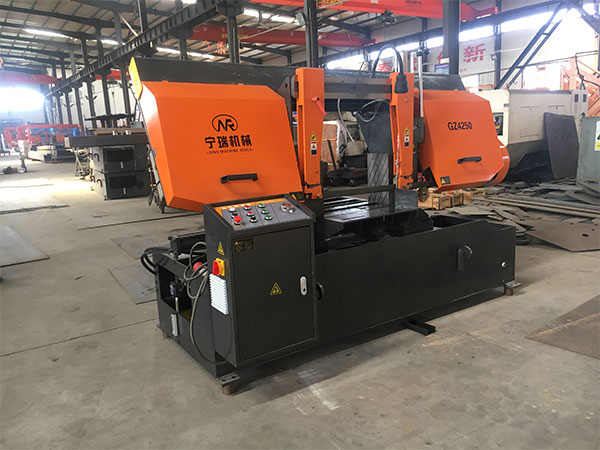

The GZ4250 bandsaw is a light duty semi-automatic band saw.The dual column design keeps the blade tracking straight. Built with high quality components, this model has a full cast iron vise and bow that are machined to tight tolerances to ensure that the cuts are exact. The blade guides are fully sealed ball bearings to ensure proper tracking of the blade.
* Semi-Automatic,straight cuts only,NO mitering
* 34mm Bi-Metal Blade
* Carbide Guides with Roller Backups
* Manually Controlled Blade Tension
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Discharge table included.
* Dual post saw design for straighter cuts as head comes down.
* Linear bearings for higher saw head stability
* Cutting feed rate hydraulically controlled
* Hydraulic lift of the saw head.
* Descent Control: Pressure Assist Hydraulic
SPECIFICATIONS:
Round @ 90 degrees: 500mm
Square @ 90 degrees: 550 x 500mm
Blade Speeds - variable: 40/60/80 m/min
Table Height: 620 mm
Maximum Work Load: 2000 kg
Machine Weight: 1800 kg
Blade Drive: 5.50 kW
Hydraulic System: 0.75 kW
Voltages available 3 phase: 220, 380 or 460 V
OPTIONS:
* Discharge Table
* Chip Conveyor,Chip Auger
* Overseas Shipping Crate
