STANDARD FEATURES:

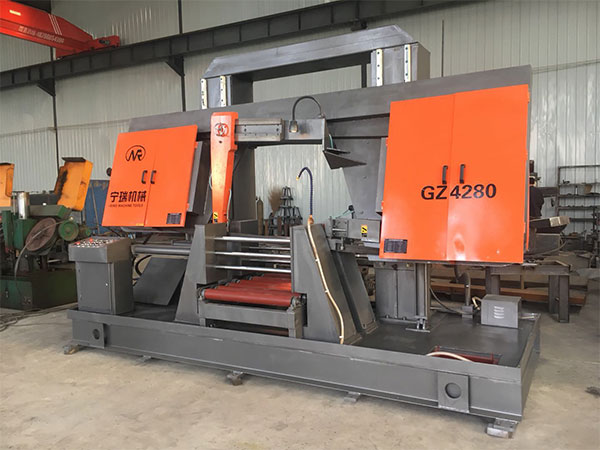

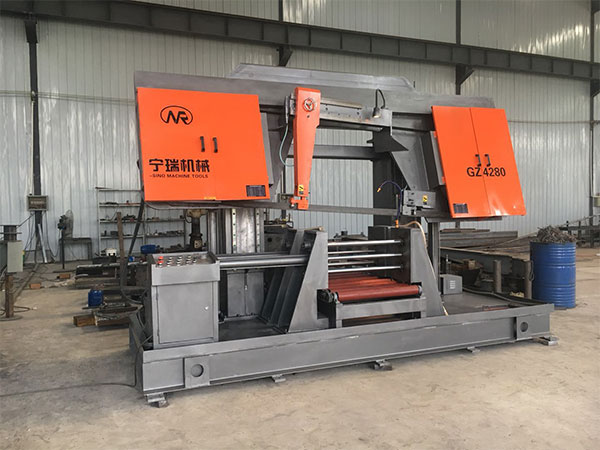

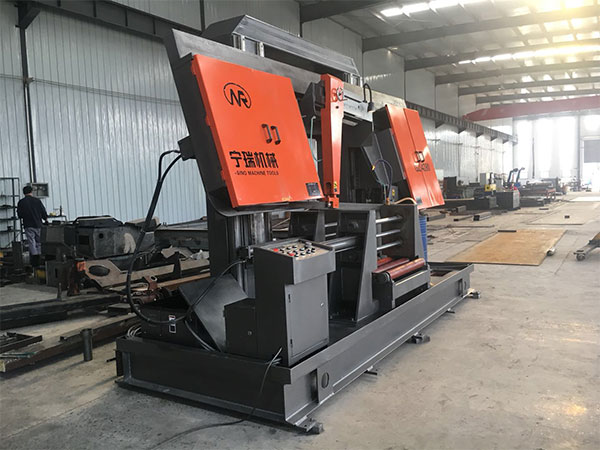

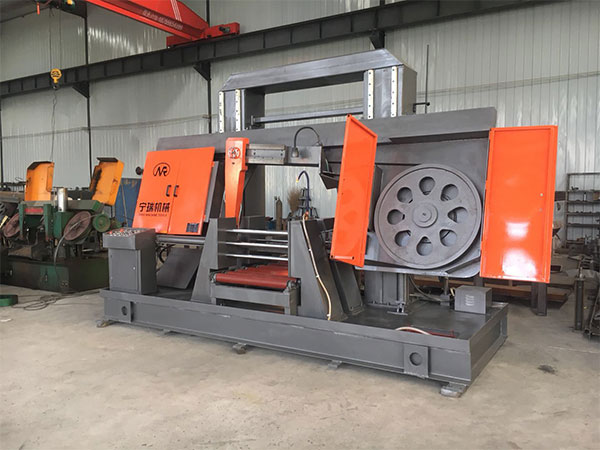

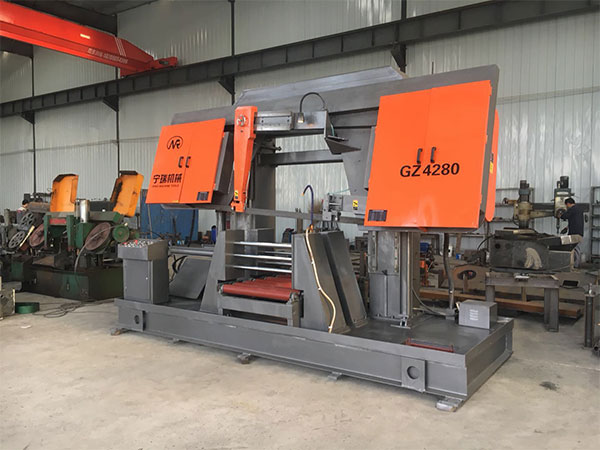

The GZ4280 bandsaw is a heavy duty semi-automatic band saw.The dual column design keeps the blade tracking straight. Built with high quality components, this model has a full cast iron vise and bow that are machined to tight tolerances to ensure that the cuts are exact. The blade guides are fully sealed ball bearings to ensure proper tracking of the blade.
* Semi-Automatic,straight cuts only,NO mitering
* 67mm Bi-Metal Blade
* Carbide Guides with Roller Backups
* Hydraulic Controlled Blade Tension
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
*Discharge table included.
*Dual post saw design for straighter cuts as head comes down.
*Linear bearings for higher saw head stability
* Cutting feed rate hydraulically controlled
* Hydraulic lift of the saw head.
*Descent Control: Pressure Assist Hydraulic
SPECIFICATIONS:
Round @ 90 degrees: 800mm
Square @ 90 degrees: 800 x 800mm
Blade Speeds - variable: 15-80 m/min by inverter
Blade specifications:8800*67*1.6mm
Work table: Roller type
Table Height: 620 mm
Lifting post diameter:150mm
Maximum Work Load: 4000 kg
Machine size:4500*1700*2480mm
Machine Weight: 4800 kg
Blade Drive: 11.00 kW
Hydraulic System: 1.50 kW
Voltages available 3 phase: 220, 380 or 460 V
OPTIONS:
* Discharge Table
* 3m motorized roller conveyor
* Chip Conveyor,Chip Auger
* Overseas Shipping Crate
