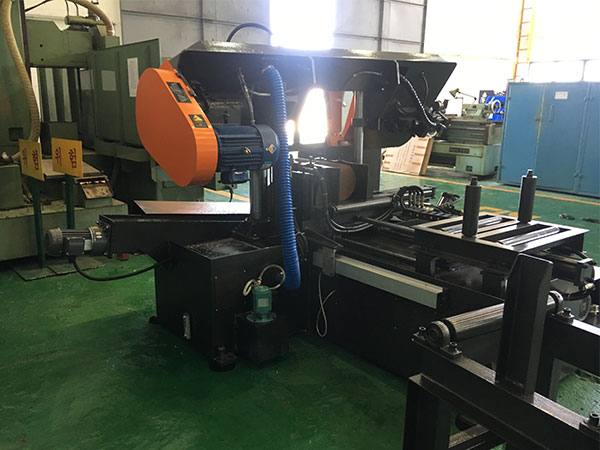

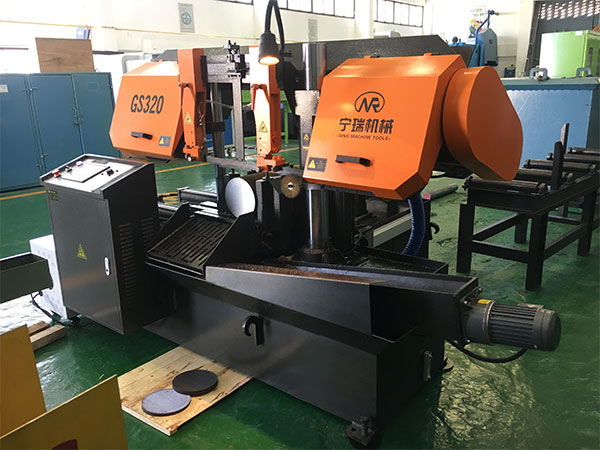

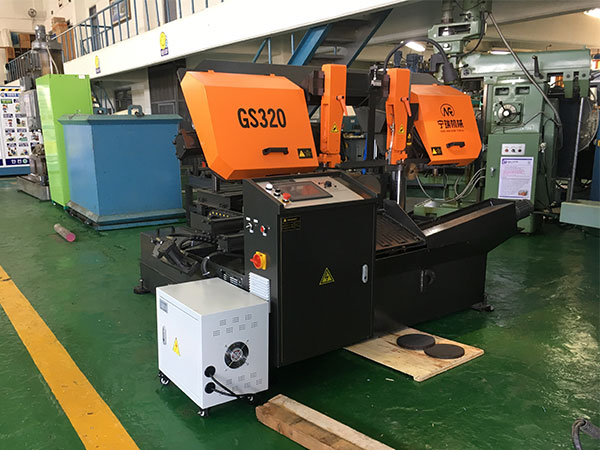

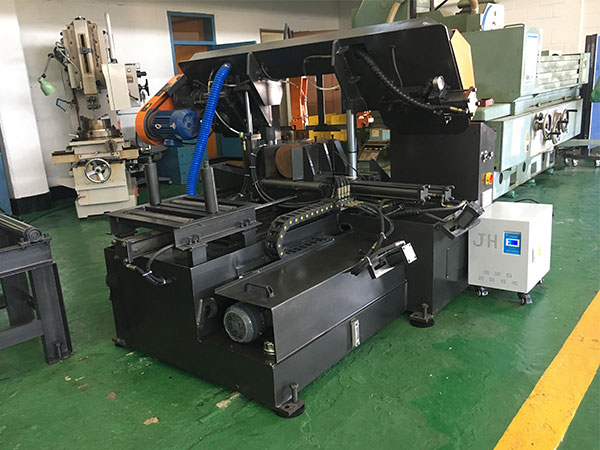

Full Automatic Band Saw GS320

STANDARD FEATURES:

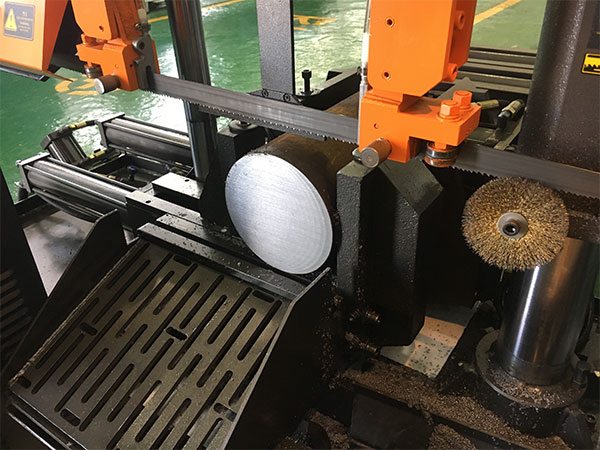

The GS320 bandsaw is a fully automatic type.Material is feed via a hydraulically driven shuttle vise mounted on linear bearings. Electronic variable speed drive, panel adjustable.

•Fully-automatic cut cycle

•Consists of material advance, saw cut

•At t end of cut the saw head will raise to top, repeat until parts counter decrements to 0.

•Parts counter to 9999

•Discharge table included.

•Dual post saw design for straighter cuts as head comes down.

•Linear bearings for higher saw head stability
• Cutting feed rate hydraulically controlled
• Hydraulic lift of the saw head.

MATERIAL FEED:
Stroke of shuttle vise is 500mm
Length of cut accuracy to +/-0.4 mm
Length of cut repeatability +/-0..1 mm

SPECIFICATIONS:
Round at 90 degrees: 320

Square at 90 degrees: 320 x 320mm
Blade Speeds - variable: 40/60/80 m/min
Table Height: 650 mm
Maximum Work Load: 2000 kg
Machine Weight: 1400 kg
Blade Drive:3.00 kW
Hydraulic System: 0.75 kW
Voltages available 3 phase: 220, 380 or 460 V

OPTIONS:
• Discharge Vises
• 3M Roller Conveyor
• Overseas Shipping Crate
