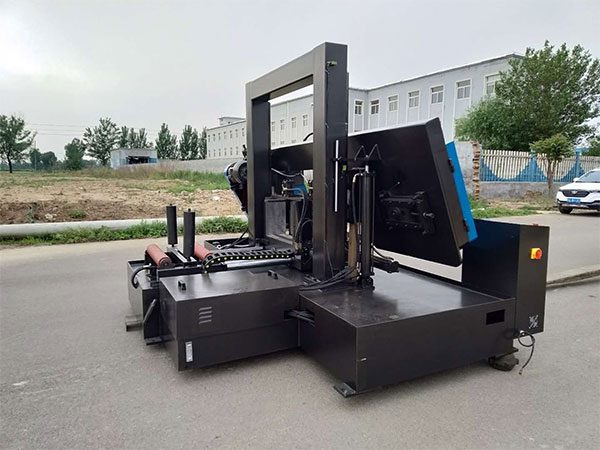

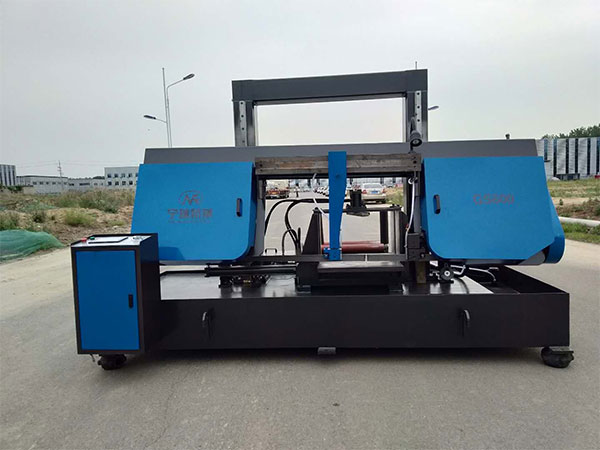

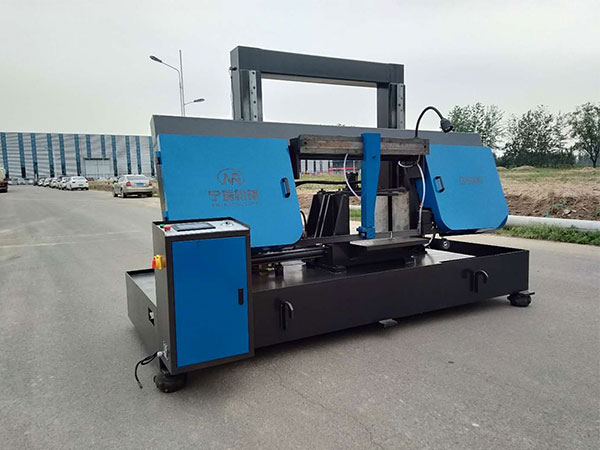

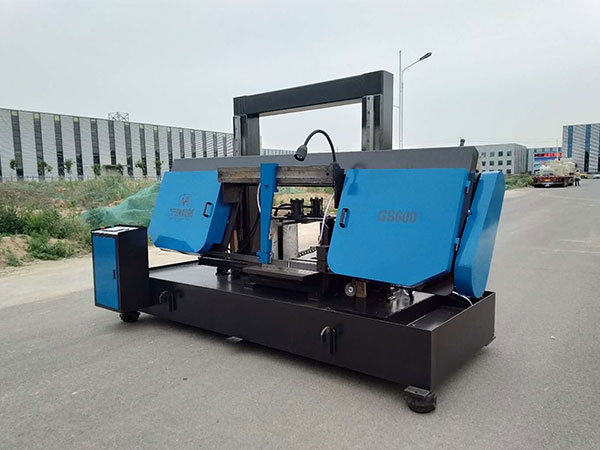

STANDARD FEATURES:
The GS600 bandsaw is a fully automatic type.Material is feed via a hydraulically driven shuttle vise mounted on linear bearings. Electronic variable speed drive, panel adjustable.
•Fully-automatic cut cycle
•Consists of material advance, saw cut
•At t end of cut the saw head will raise to top, repeat until parts counter decrements to 0.
•Parts counter to 9999
•Discharge table included.
•Dual post saw design for straighter cuts as head comes down.
•Straight cuts only, NO mitering/angle
•Linear bearings for higher saw head stability
• Cutting feed rate hydraulically controlled
• Hydraulic lift of the saw head.
MATERIAL FEED:
Stroke of shuttle vise is 500mm
Length of cut accuracy to +/-0.4 mm
Length of cut repeatability +/-0..1 mm
SPECIFICATIONS:
Round at 90 degrees: 600
Square at 90 degrees: 550 x 550mm
Bundle cutting capacity: 400*400mm max. & 260*50mm Min.
Blade specifications:6670*54*16mm
Blade Speeds - variable: 40/60/80 m/min
Table Height: 650 mm
Maximum Work Load: 4000 kg
Machine size:3100 x 2400 x 2100mm
Machine Weight: 3500 kg
Blade Drive:7.50 kW
Hydraulic System: 1.50 kW
Coolant pump:0.125 KW
Voltages available 3 phase: 220, 380 or 460 V
OPTIONS:
• Discharge Vises
• 3M Roller Conveyor
• Overseas Shipping Crate
