| Quantity: | |
|---|---|
Features
1. Semi-automatic operation models,including cutting and feeding.
2. Column type down feed system with sealed bearings

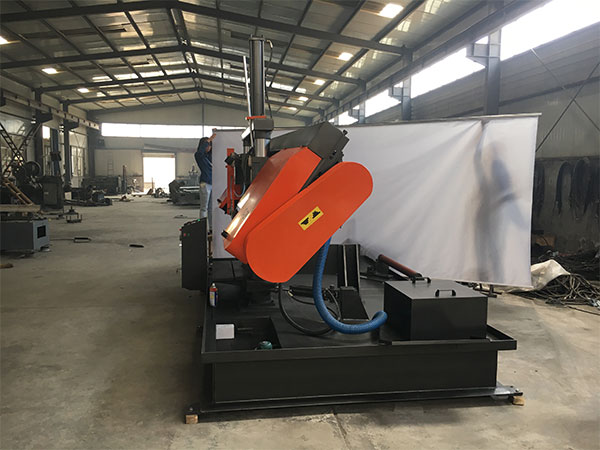

3. Characteristic miter cutting design allows from 0°-45° cuts by swiveling head. 4.Cutting angle is set perfectly with the help of a rule scale.
5. Hydraulic vice clamp,saves operator’s time & energy and increases blade life.
6. Cutting lubrication by oil mist.
7. Cutting fluid flushing hose for machine cleaning.
8. Roller stock table 1M long.
Specification

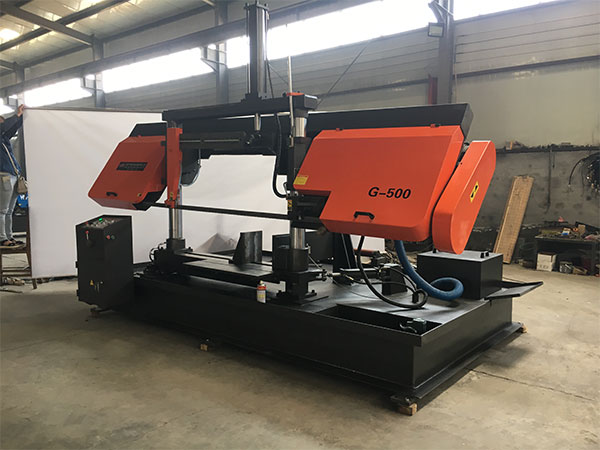

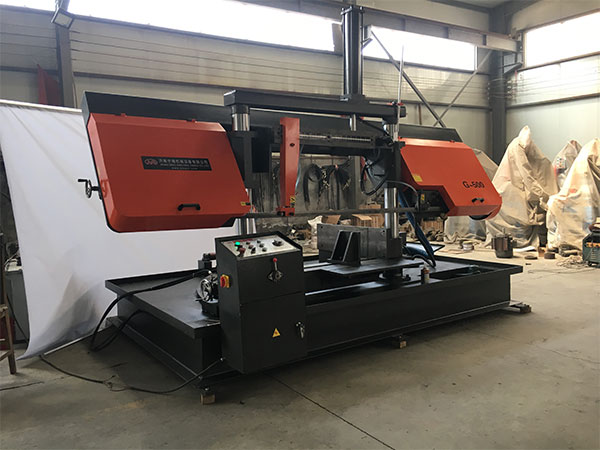

| Model | G-500 | |
Cutting Capacity (mm) | ●90° | 500mm |
| ■90° | 700 x 500 (Width by height) | |
| + 45° | ●500mm, ■500*500 | |
| Motors | Blade Drive | 5.50 kw |
| Hydraulic | 1.50 kw | |
Coolant | 0.12kw | |
| Blade spec. | 5800 x 41 x 1.30mm | |
| Blade Speed | 40, 60, 80m/min | |
| Vise Open | 750 mm | |
| Working Table | 550mm | |
| Machine Dimensions | 3500mm | |
| 1900mm | ||
| 1850mm | ||
| Net Weight | 2500KG | |
| Q’ty/20‘ container | 2 sets | |
